GM-5.0 Lithium Battery Sanding Belt Rail Grinder
- Description
-
GM-5.0 Lithium Battery Sand Belt Rail Grinding MachineIndependent Research and Development - Lithium Battery Sand Belt Rail Grinding Machine

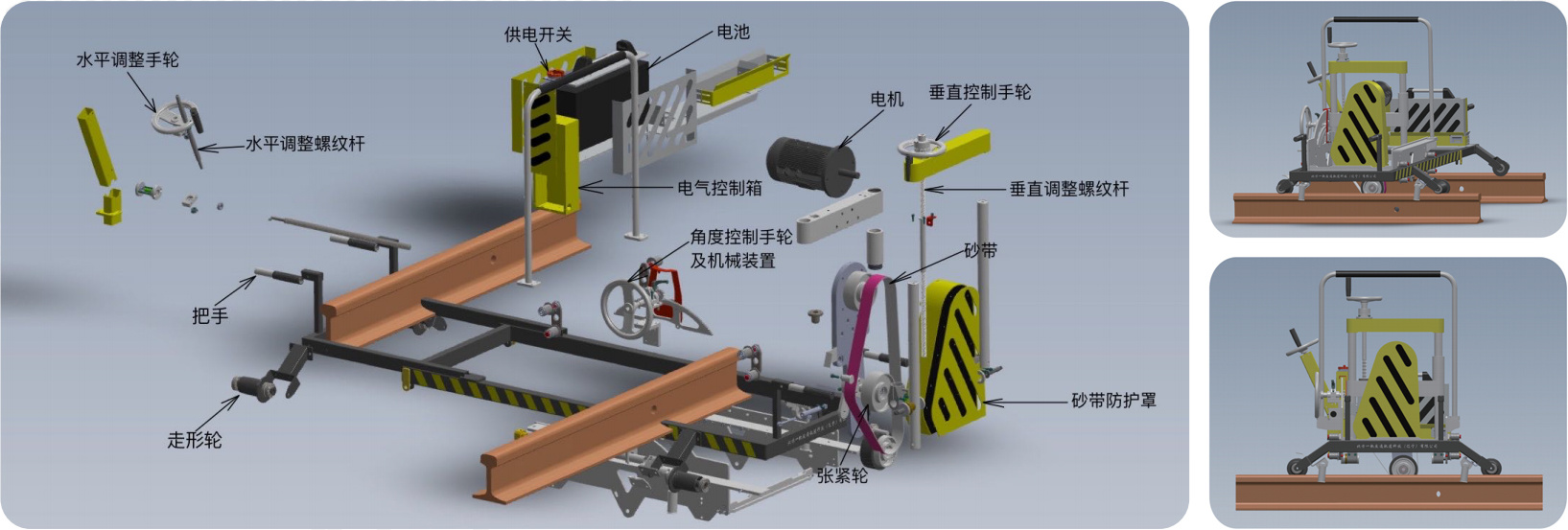

Product Structure
Motor and battery; grinding machine frame; travel wheels; electrical control box; grinding wheel triangular device.
Product Functions
Suitable for rail surface fine-tuning, minor damage repair, large grinding area, fast working speed, and high repair efficiency.
Product Advantages
1. High grinding efficiency: This machine uses sand belts as grinding tools for rail grinding.
2. High control precision: Vertical feed is controlled by a stepper motor, with maximum precision reaching 0.06mm.
3. The surface quality of the ground rail is good, maintenance is convenient, cost-effective, safe, and easy to operate.
4. Improved working environment: When using this machine, the working noise is low, there is no oil smoke smell, which is beneficial to workers' health.
5. Advantages of lithium battery: Quieter, zero emissions, no pollution, maintenance-free, high efficiency, extended sustainable lifespan, and eliminates complex maintenance.Technical Parameters
Length
2000 mm
Width
1000 mm
Height
900 mm
Grinding Machine complete
≤120 kg
Working speed
>=3800 rpm
Max. peripheral speed
50 m/s
Abrasive belt grinding angle
Inner side ≥40°, outer side ≥40°
Abrasive belt feed accuracy
≤0.06mm
Swing angle adjustment accuracy
>=1°
Rate Power
5 KW
Rate Voltage
60 V
Lithium Battery
60 AH
Environmental conditions
-25°C ~ +55°C
