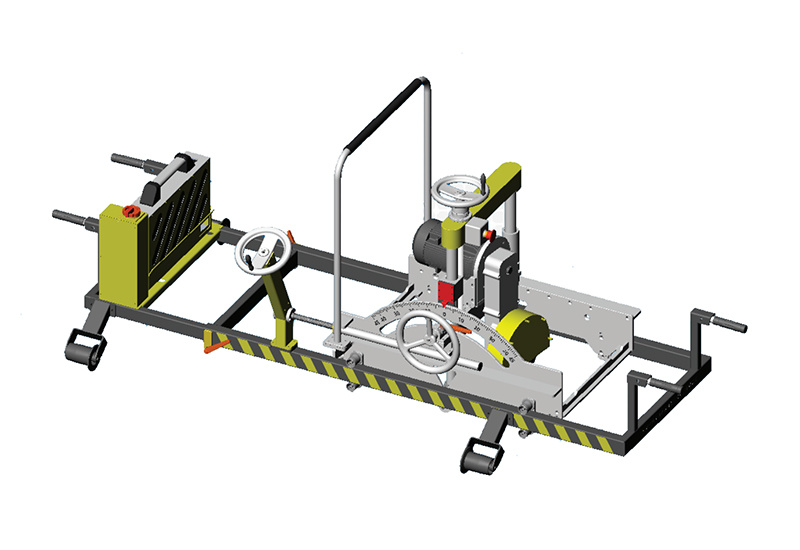

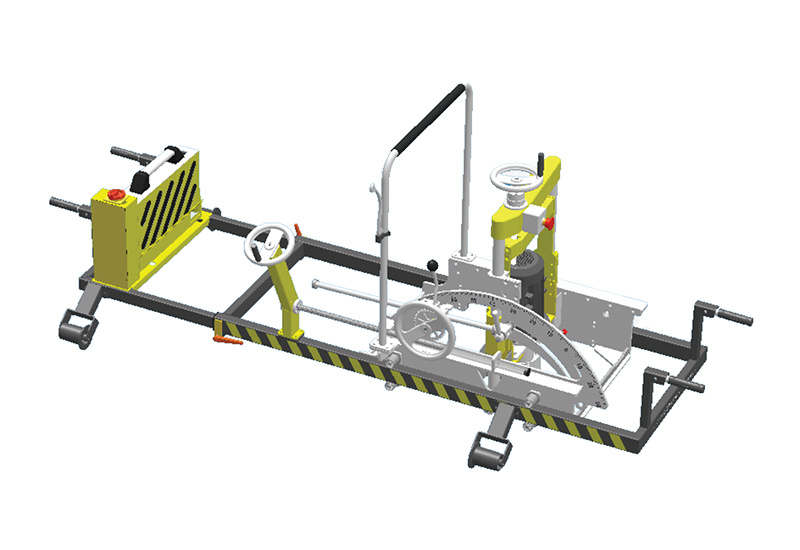

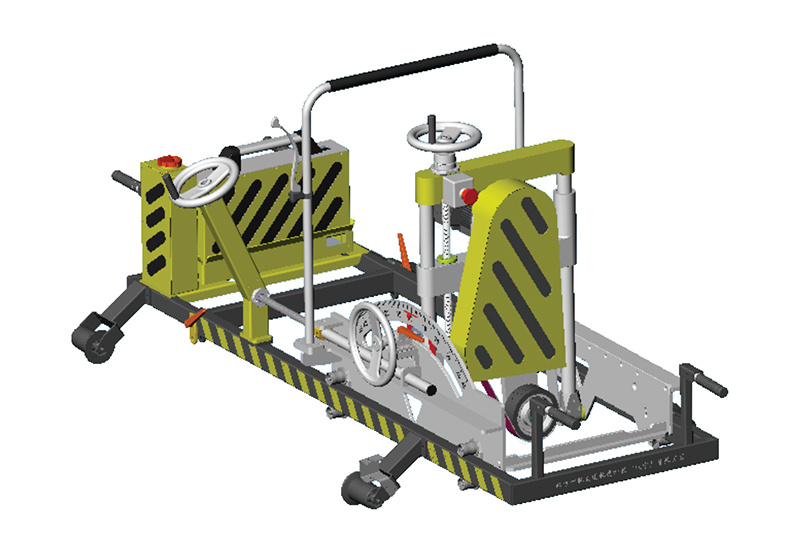

CZM-3600L Lithium Battery Multifunctional Vertical Polisher
- Description
-
CZM-3600L Lithium Battery Multifunctional Vertical GrinderIndependent Research and Development - Lithium Battery Multifunctional Vertical Grinder
Product Structure
Motor and battery; grinder frame; travel wheels; electrical control box; grinding wheel triangular device.
Product Functions
Grinding equipment for rail and switch areas. Suitable for grinding and renovation projects of almost all tracks, especially in switch areas, optional: for groove rails.
Product Advantages
1. Wide application range: suitable for grinding and renovation projects of almost all tracks.
2. High quality: high grinding efficiency, stable machine operation, and adjustable central grinding wheel for more precise grinding surfaces, with scale adjustment for precise wheel angles, using additional travel wheels.
3. Convenient and practical: uses ergonomic levers and manual devices.
4. Advantages of lithium battery: quieter, zero emissions, no pollution, maintenance-free, high efficiency, extended sustainable lifespan, eliminating complex maintenance.Technical Parameters
Length / Length 2000 mm Width / Width 1000 mm Height / Height 900 mm Grinding Machine complete / Total weight of the machine ≤120 kg Working speed / Grinding speed ≥3600 rpm Max. peripheral speed / Grinding linear speed 50 m/s Grinding wheel grinding angle / Grinding wheel grinding angle Inner side ≥80°, outer side ≥30° Grinding wheel feed accuracy / Grinding wheel feed accuracy ≤0.1 mm Swing angle adjustment accuracy / Swing angle adjustment accuracy ≤1° Rate Power / Motor power 5 KW Rate Voltage / Working voltage 60 V Lithium Battery / Lithium Battery 60 AH Environmental conditions / Working environment -25°C ~ +55°C
Key words:
